Product type：TFT Display
Show contents：480x854
Outline size(mm) ：72.0x122.0x4.15
Size of View Window(mm)：5.0
Display size(mm) ：5.0
Effective size(mm)：61.632x109.654
Product application：industrial control systems, handheld electronic devices,
Visual angle：IPS
Backlight type or brightness：500cd/m2
Connection PIN Number：FPC-20 pin
Interface mode：MIPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7701S<TFT>,GT911<CTP>

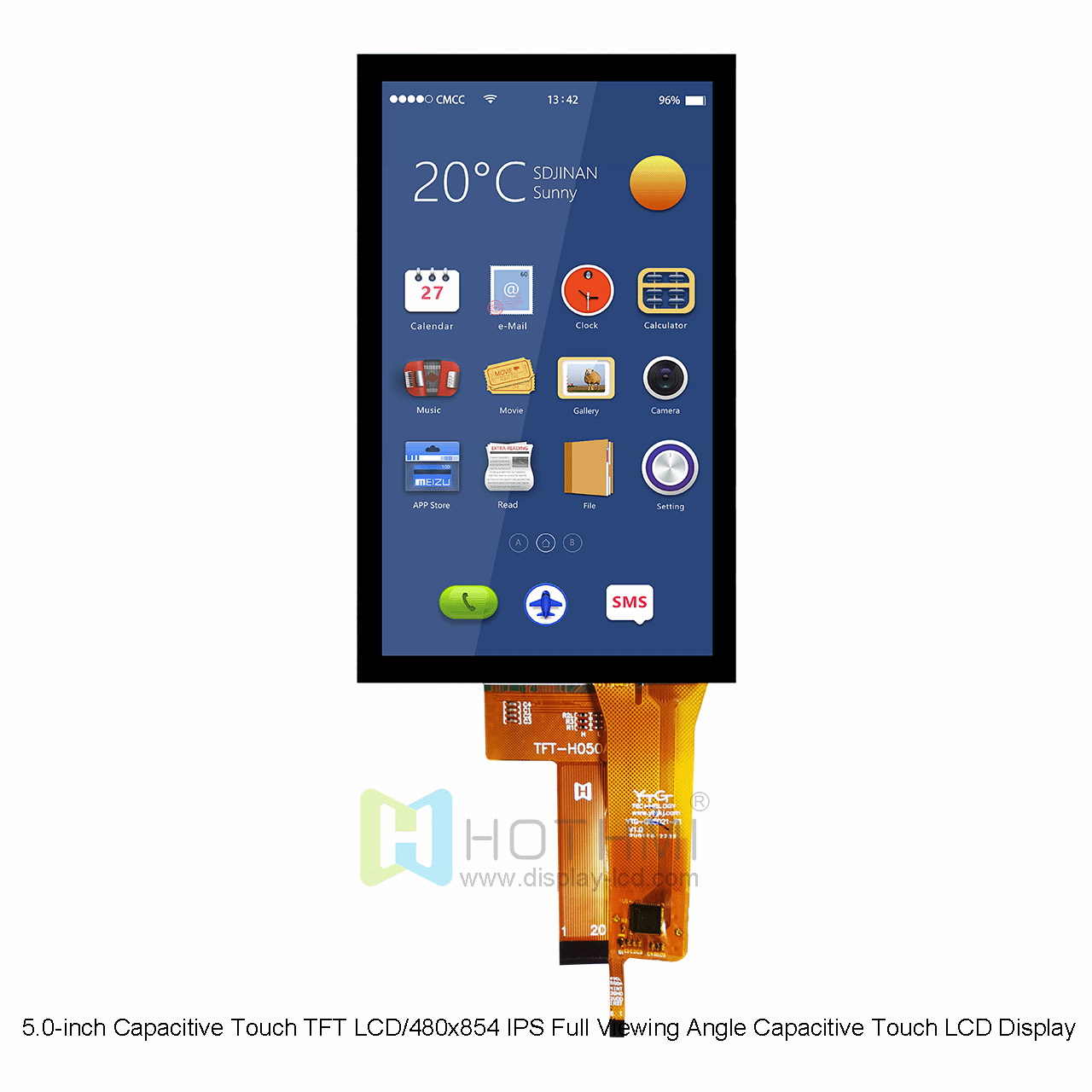

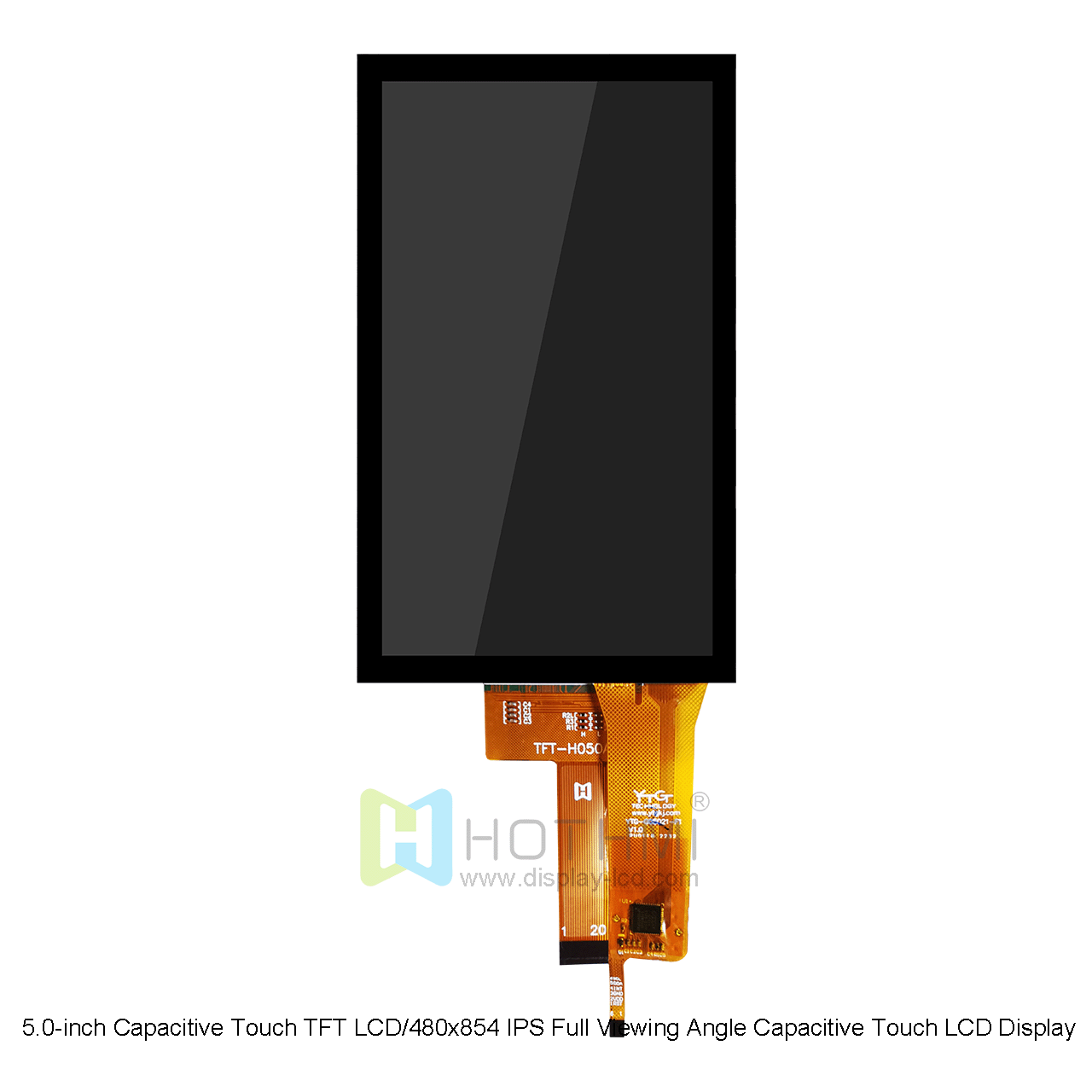

This standard 5.0 display TFT-H050A11FWIST5C20 has a resolution of 480x854 pixels, IPS full viewing angle, and excellent quality no matter which direction you watch from, with a brightness of 500cd/m2. The compact size, 3.3V low voltage power supply, and impressive display quality make this display an excellent choice for projects without touch function.

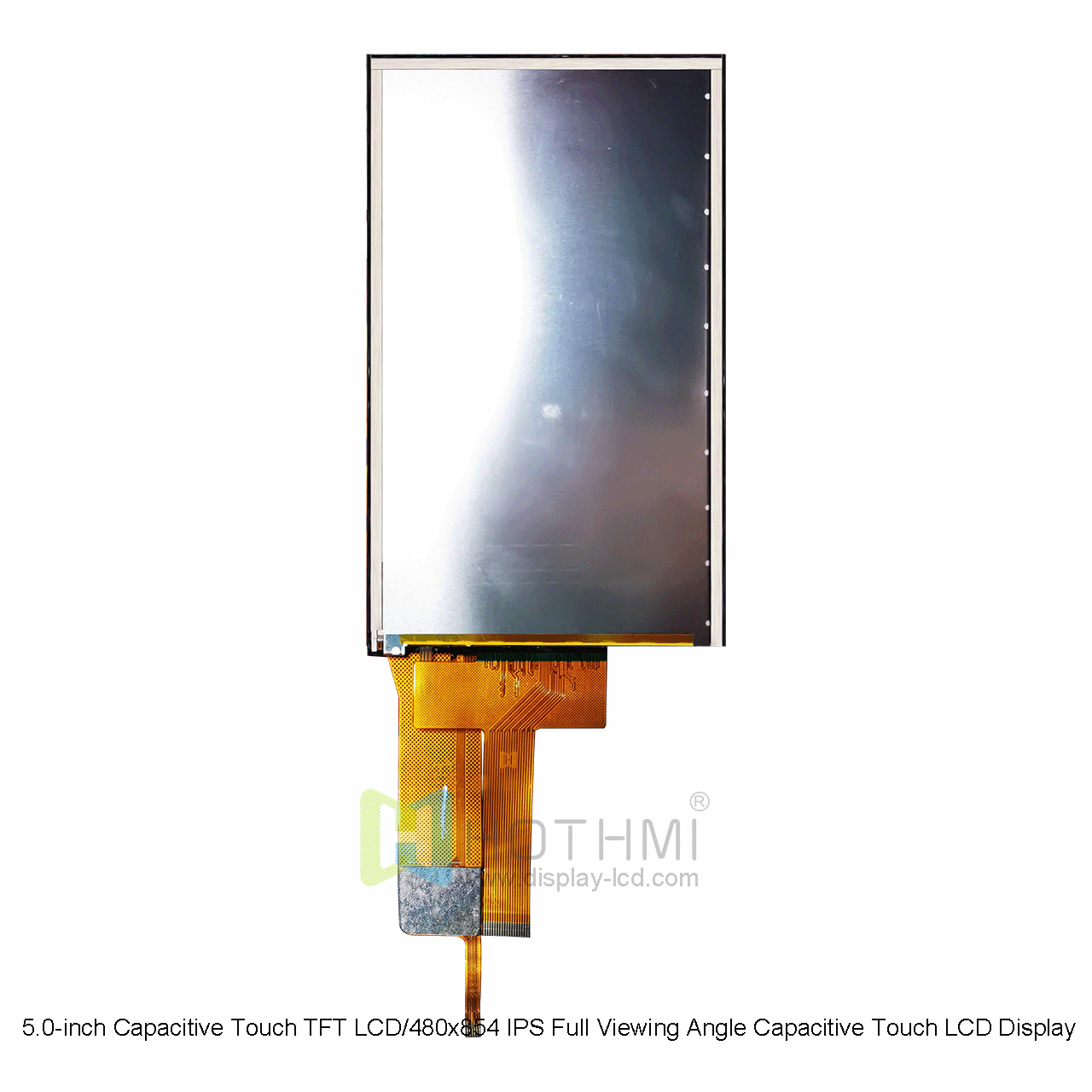

This 5.0-inch LCD display uses a 20PIN FPC soft cable connection to provide a safe and reliable electrical connection, and the FPC soft cable connection method makes disassembly easier and easier to operate. This TFT LCD display is powered by the ST7701S controller. The controller optimizes the function of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include the Internet of Things, industrial automation, consumer electronics, test and measurement, and handheld devices. Due to their compatibility with Android/RK motherboards, they are also very suitable for DIY or prototype projects. The LVDS interface enables fast and efficient communication between Linux/industrial control motherboards/RK series, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
